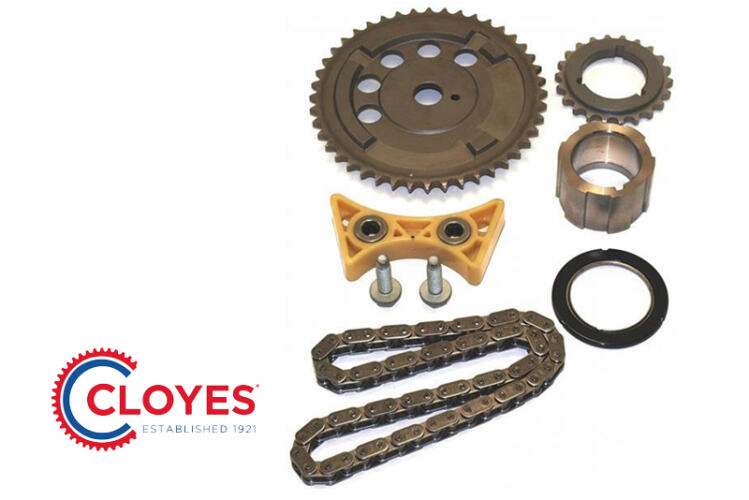

Cloyes Race Billet True Roller Timing Set - Gen IV LS

Billet Crankshaft Sprocket Has Three Keyways for +/- 4 Degrees Adjustability.  Both Billet Steel Sprockets are Heat Treated for Durability.  TRUE Roller 0.250″ Roller Diameter “Z” Chain for Reduced Friction.  “Z” Chain Approximately 33% Overall Increased Strength over the Standard High Performance Chain.  “Z” Chain Featuring a Press Fit Center Link design that Increases Load Distribution with Heat Treated and Processed Links to Maximize Ultimate Breaking Strength while Remaining Ductile for Toughness and Pre-stressed to Increase Fatigue Life.  Includes Captured Needle Camshaft Sprocket Thrust Bearing to Minimize Block Thrust Surface Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout.

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

• Camshaft Sprocket Material:
  • Steel
• Crankshaft Sprocket Material:
  • Steel
• Grade Type:
  • Performance
• Keyway Adjustable:
  • Yes
• Maximum Advance At Camshaft (DD):
  • 2
• Maximum Retard At Camshaft (DD):
  • 2
• Roller:
  • Yes
• Sprockets Included:
  • Yes
• Timing Chain Type:
  • Single Roller
• Timing Marks:
  • Yes
