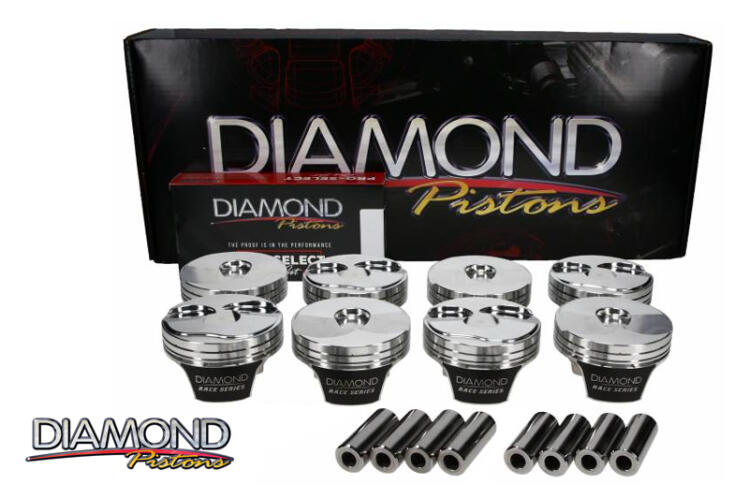

Diamond LT2K Race Series Piston Set - 4.125 Bore - GM Gen V - LT1

Diamond’s highly regarded “2K” series of shelf-stock forged aluminum pistons for robust 2,000 horsepower power-adder builds has been expanded to include the LT2K model to complement Chevy Gen V LT1/LT4 cylinder heads.

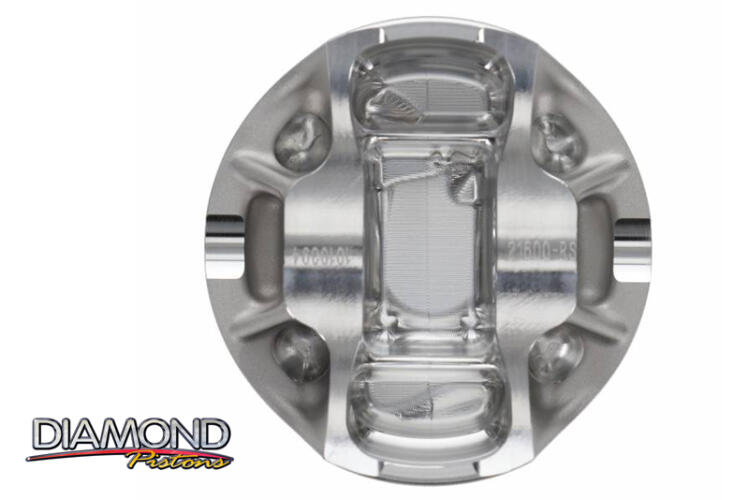

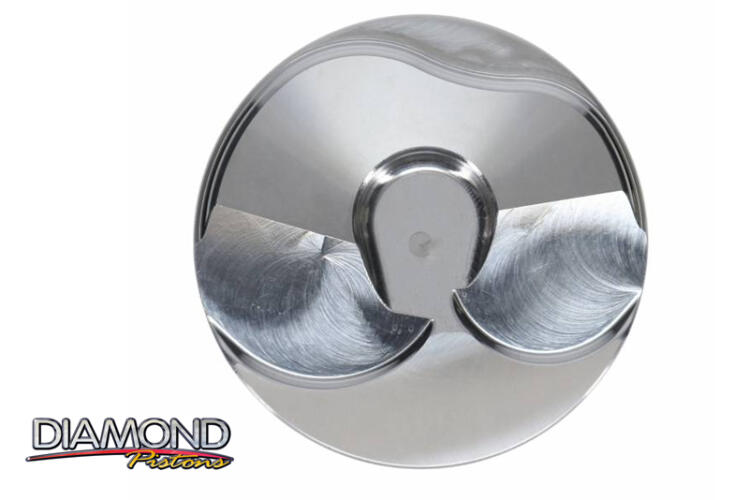

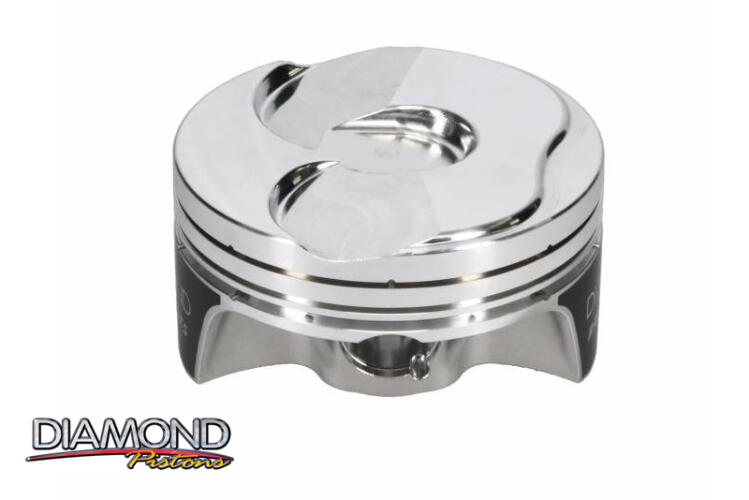

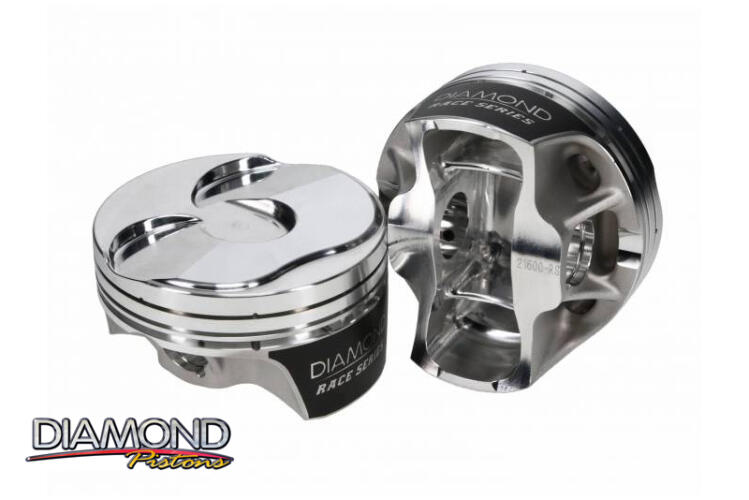

Forged from 2618 aluminum alloy, the LT2K pistons incorporate special inboard webbing to provide additional structural support for turbocharged, supercharged or nitrous oxide – boosted applications. The crowns are 3D milled for a perfect finish and the underside machined to remove any unnecessary weight. The pistons feature lateral gas ports to enhance ring sealing and come with a 1.5 x 1.5 x 3.0mm Total Seal piston ring package.

Other important attributes include a moly skirt coating to reduce frction, extra-strong Trend H13 tool steel wrist pins and enhanced pin oiling.

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

• Product Series
  • LT2K Race Series
• Bore Diameter
  • 4.125 IN
• Stroke
  • 3.622 IN
• Rod Length
  • 6.125 IN
• Compression Height
  • 1.304 IN
• Compression Ratio
  • 11.5:1 – LT1 58.2cc
  • 11.0:1 – LT4 65.4cc
• Piston Volume
  • -4.00 CC
• Piston Material
  • 2618 Aluminum Alloy
• Skirt Coating
  • Yes
• Piston Quantity
  • 8
• Ring Set Included
  • Yes
• VP Itake Depth
  • 0.200
• VP Exhaust Depth
  • 0.200
• Oil Ring Thickness
  • 3.0 MM
• Wrist Pin Material
  • H13 Tool Steel
• Wrist Pin Style
  • Floating
• Wrist Pin Outer Diameter
  • 0.927 IN
