Fore Innovations Triple-Pump Fuel System - 2014-2019 Corvette

PLEASE CONTACT OUR SALES TEAM TO BUILD YOUR CUSTOM FUEL SYSTEM AT 313-561-5500

MAP or static referenced direct injection supply fuel system up to 1500 rwhp with dual fuel pumps (recommended to run one pump full time, then activate secondary pumps under load).  Supplies High Pressure Fuel Pump (HPFP) and auxillary port injection or wet nitrous.

Includes in-tank supply system that retains OE transfer, fuel level senders, and EVAP functionality, upgraded feed and return lines, high capacity filtration and check valve, flow through t-block direct mounted on HPFP inlet tube, high capacity F2i regulator with provisions for static reference.

NOTE: Fuel Systems are made to order.  – Pricing is a Starting Point  –  Selections must be made from list of “options”.  I.E.: Fuel Type, Fuel Pump Size/Brand, Filteration, Fuel Lines, etc.

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

INCLUDES:

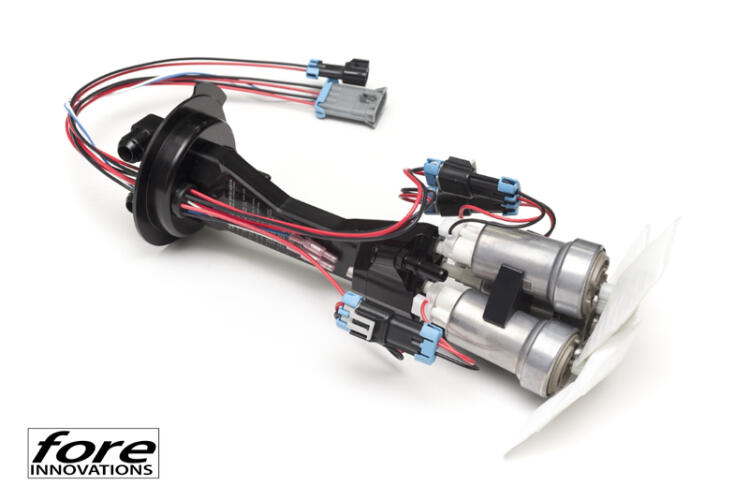

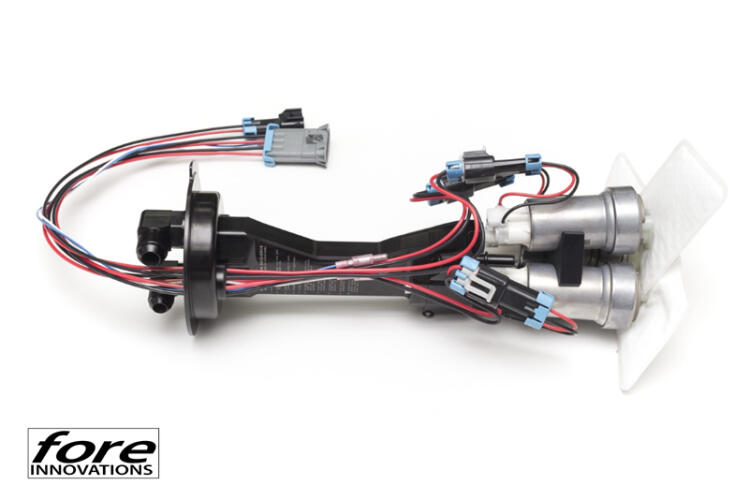

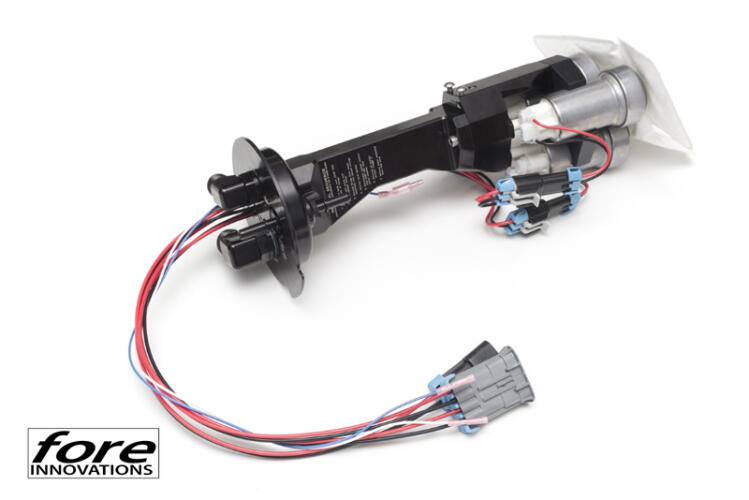

• Corvette C7 Triple Pump Module
• F2i Fuel Pressure Regulator (MAP reference or static)
• 88mm Inline Fuel Filter
• FCV Check valve
• T-block to direct mount on HPFP
• OE fuel pressure sensor extension pigtail
• All fittings, hose, hardware required for typical fuel line plumbing
• -35 feet of fuel line (your choice)
• -10 billet compression style hose ends
• -Qty 4, billet low profile 90 degree AN to o-ring fittings
• -Qty 3, billet straight AN to o-ring fittings
• -Qty 1, 3/8 EFI female to ORB-10 male adapter
• -Qty 1, AN union with C7 fuel pressure sensor adapter
• -Qty 10, hose straps with stainless mounting screws
