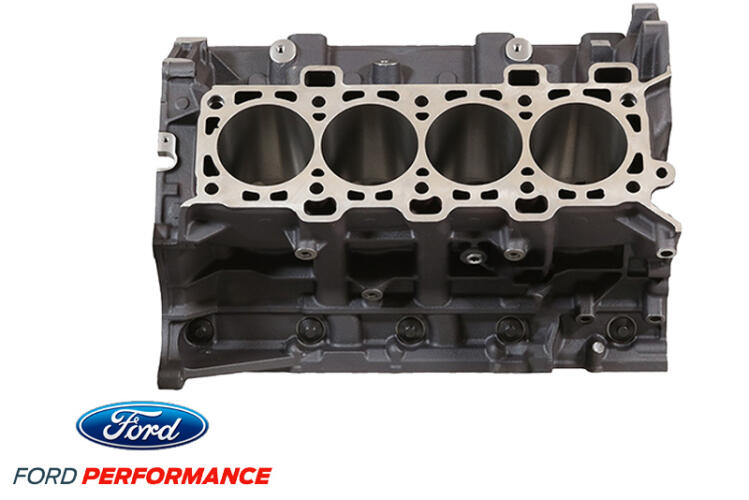

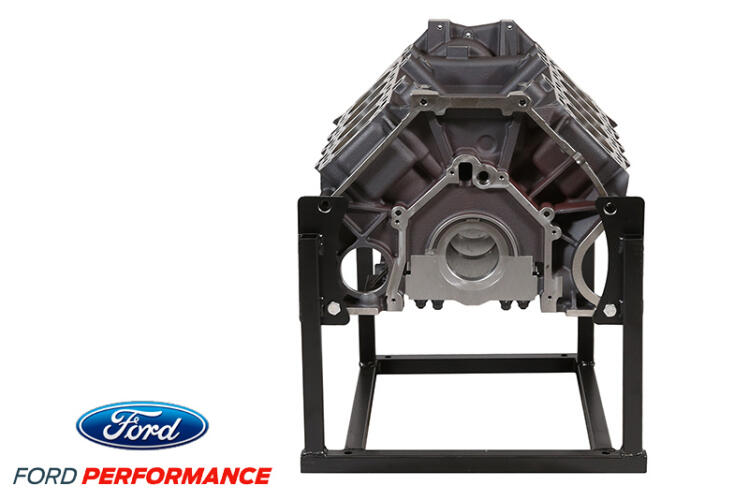

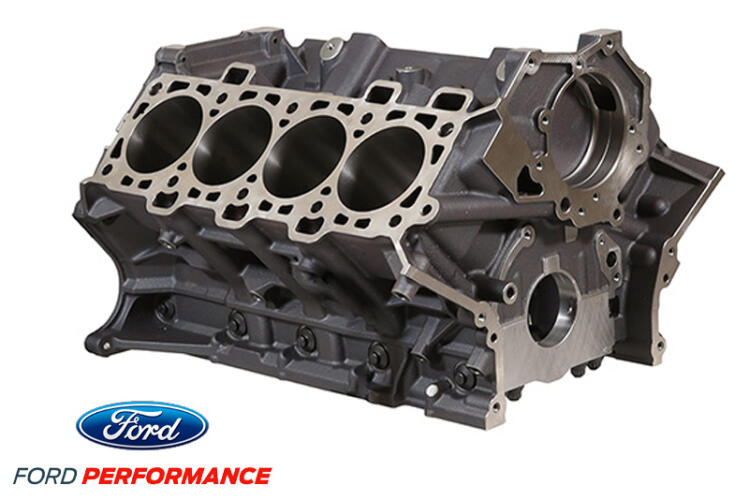

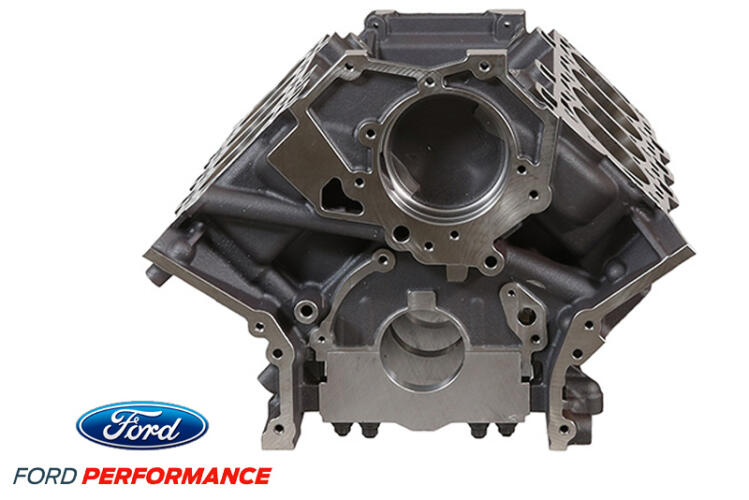

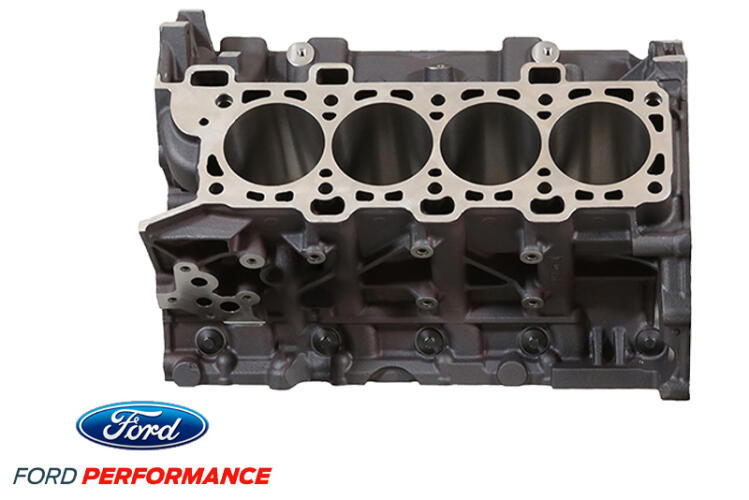

FORD PERFORMANCE CAST IRON RACE BLOCK - COYOTE

Ford Performance cast iron version of the 2011-2017 Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort/boosted Coyote engine builds.

NOTES:

• Installation of ‘O-ring’ style head gaskets recommended for 95 mm bore applications
• Recommended forged steel crankshafts:
  • (Forged) FRDM6303-M52B
  • (Semi-Finished) FRDM6303-M52P

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

FEATURES:

• Deck height:
  • 227 mm (8.937″)
• Finished bore:
  • 92.2 mm (3.630″)
• Maximum bore:
  • 95.0 mm (3.740″)
• Maximum stroke:
  • 99 mm (3.897″)
• Maximum displacement:
  • 5.6L
• Standard Coyote 100 mm bore spacing
• Lengthened bores for added strength
• Revised deck design for added strength around the water jackets
• Utilizes 12 mm head bolts
• Billet steel 6 bolt main caps with ARP hardware
• Accepts Gen 1 and Gen 2 Coyote 5.0L cylinder heads
• Accepts Gen 1, Gen 2, and Gen 3 GT350 5.2L cylinder heads
• Requires head gasket to match cylinder head
• Weight:
  • 203lbs when finished to a 94mm bore
