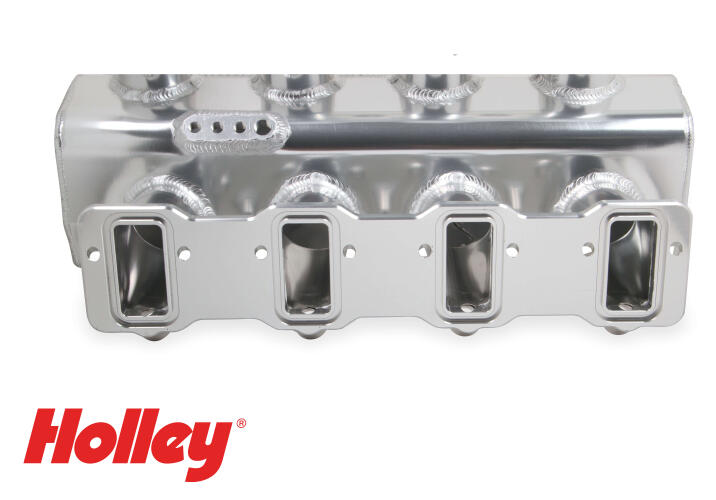

Holley Sniper EFI Fabricated Race Series Intake Manifold - GM LS3/L92 - 90mm - Silver

Holley Sniper EFI Fabricated Manifolds continue to push the aftermarket by introducing our latest Race Series line of intakes for GM LS3/L92 engine platform. The Race Series Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a compelling value for those in the market for a high-performance sheet metal style intake manifold.

Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.

The Holley Sniper intake manifold works best when matched with a High Performance Throttle Body.

Inludes necessary Fuel Rail Kit and Required Hardware (shown below).

NOTE:

*May require hood modifications

**This part is legal for sale or use on Racing Use Only Vehicles

***Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

Features:

• Silver finish creates high impact under-hood styling
• 5mm (13/64″) thick T6061 sheet aluminum construction for maximum durability

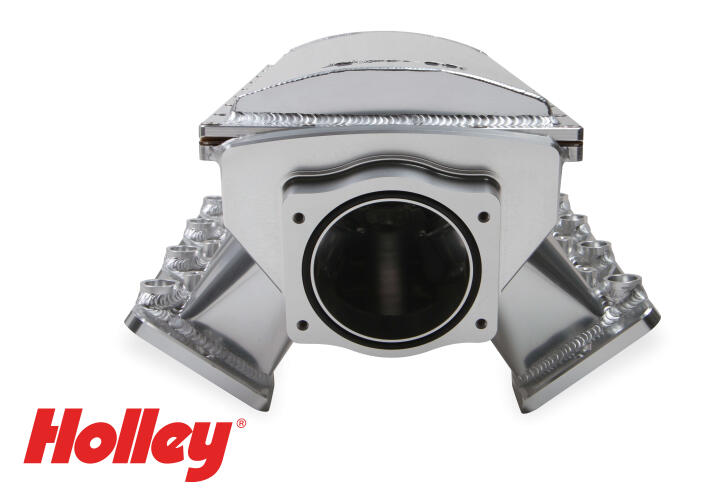

• 90mm throttle bore opening for increased air flow
• 100% TIG welded for strength and durability
• Includes 3/8″ Fuel rail kits (Sniper logo laser engraved)

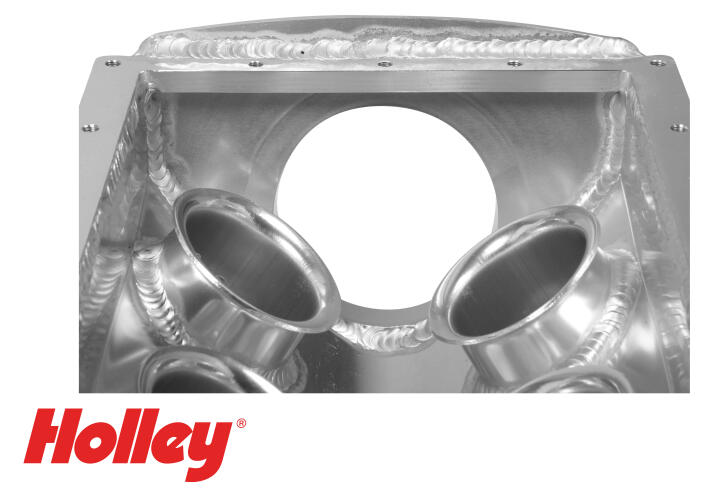

• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

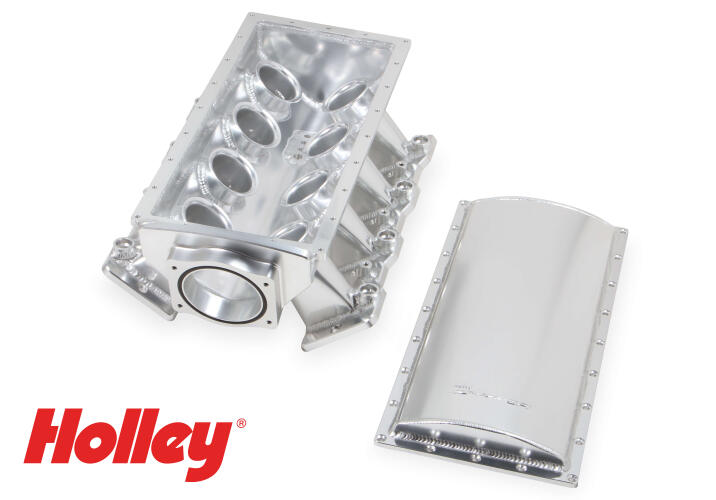

• Removable top for ease of inspection, modification, and addition of sensors
• Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications
• Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
• Longer Intake runner lengths offering a wider RPM operating range of 2400-8200 RPM
• Product includes all gaskets and hardware for a hassle-free installation

SPECS:

• Application
  • GM LS3/L92
• Color/Finish
  • Silver Satin
• Construction
  • Fabricated
• Front Height
  • 9.62 inch
• Rear Height
  • 9.015 inch
• Fuel System Type
  • EFI
• Injector Style Provision
  • LS3/L92 EV6 USCAR
• Recommended Use
  • Forced Induction
• RPM Power Band
  • 3500-8000 RPM
• Runner Length
  • 5.512″ (140mm)
• Throttle Bore
  • 90mm
• Vacuum Ports
  • (3) 1/8″-28BSPT & (1) 1/4″-19BSPT
