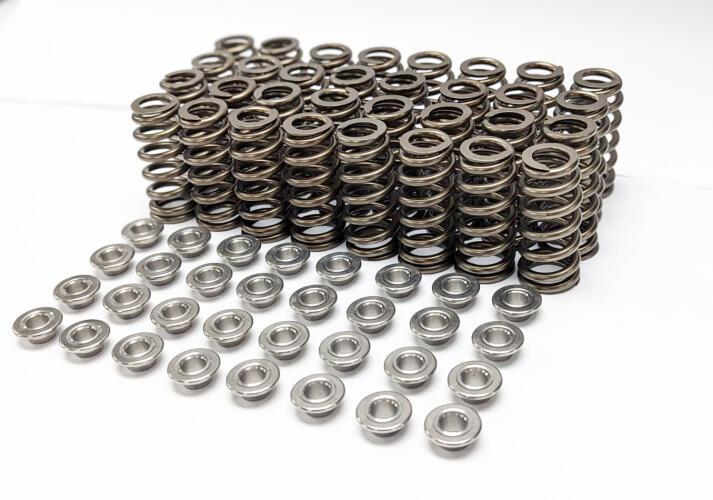

5.2L VOODOO SPRING KIT

The Livernois Motorpsorts & Engineering spring kit for the 2015-2023 Ford 5.2L VooDoo cylinder heads is now available! This kit consists of our custom valve springs which are 100% USA Made and feature high performance oil shedding coating, in addition to being fully surface enhanced for better high RPM durability and control. Also included in the kit are new OEM valve seals, Machined Chrome Moly retainer for enhanced durability, and steel locks compatible with the unique valve lock design of the factory valves. Our valve spring package is perfect for those of you using the VooDoo engine in sustained high RPM use, or for Coyote engines looking to utilize the VooDoo head and are wanting to run a more aggressive camshaft set.

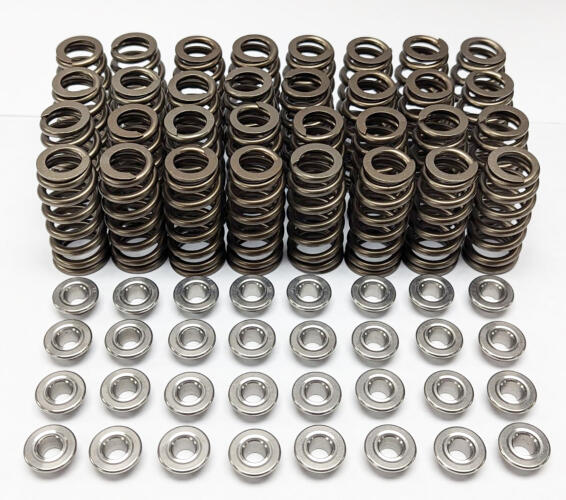

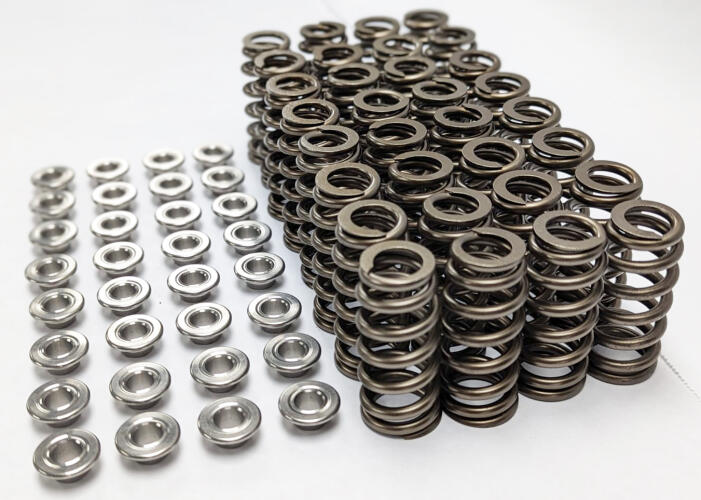

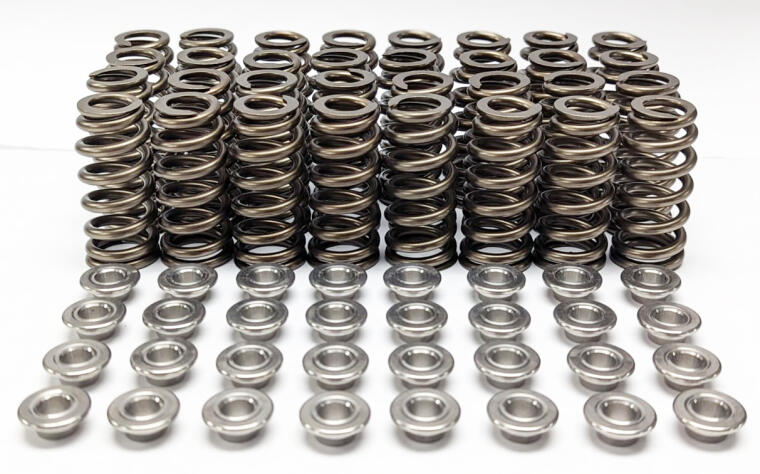

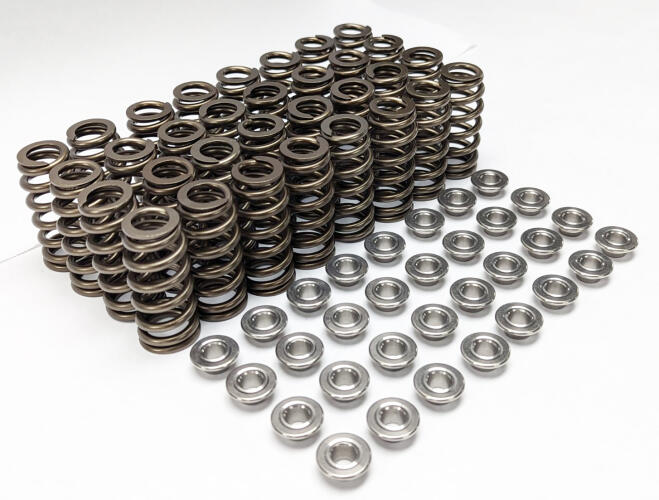

This kit inlcudes:

• 32 Livernois Custom Springs
• 32 Upgraded Valve Seals
• 32 Custom Retainers
• 32 Valve Locks (pair)

** Also check our selection of CNC ported cylinder heads – available bare or assembled.

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

.550″ Lift Capable

1.810″ Installed Height

120# Seat Pressure

1.200″ Coil Bind

275# Open Pressure @ .550″  Lift
