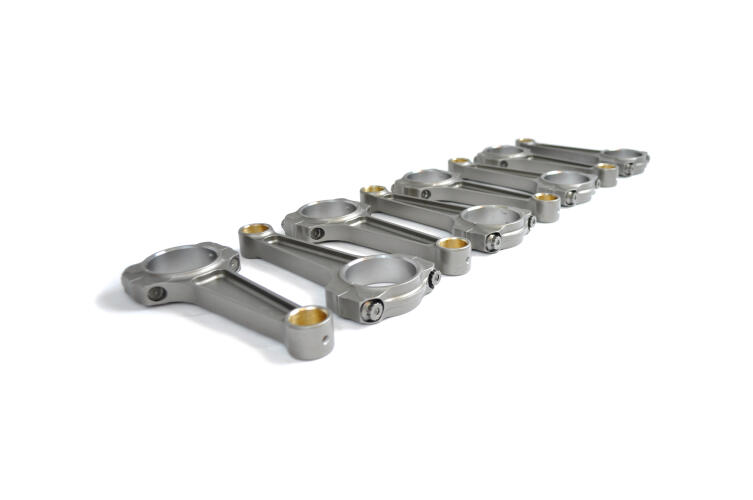

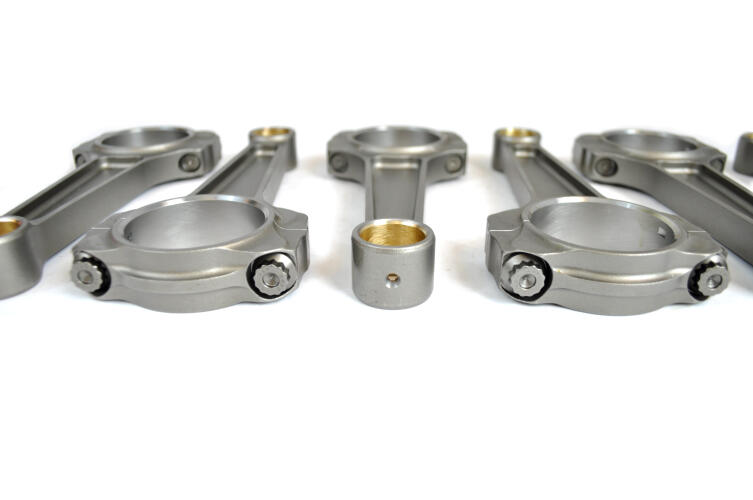

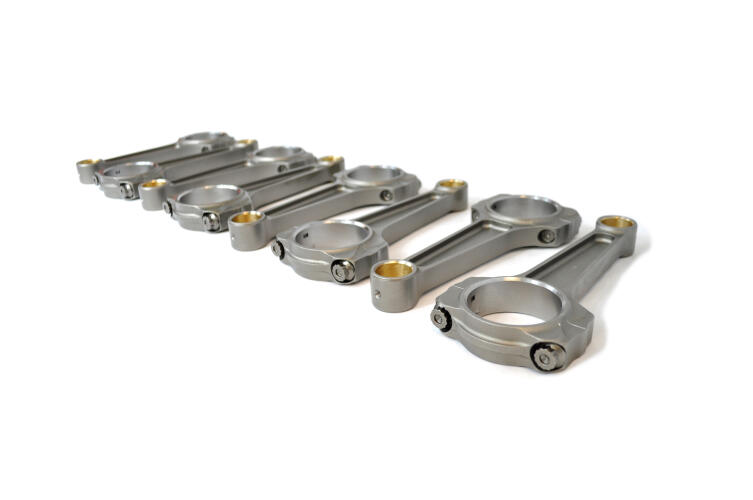

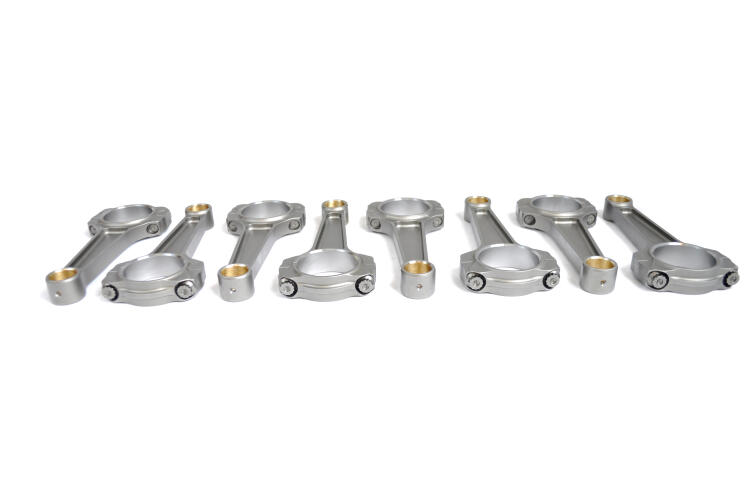

MANLEY PRO I-BEAM ROD GEN3 HEMI - 6.200 LENGTH .927 PIN

Manley Pro Series “I” Beam Rods are forged from 4340 aircraft quality vacuum degassed material. Utilizing a proven Lightweight yet rugged design and ARP 2000 cap screws, they are properly shot peened after machining and 100% magnafluxed.

On all Manley connecting rods, sets are weight matched to ą 1.5 grams, big and small end bores are final honed to a tolerance of a .0002″, critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by our final inspection department; thus rendering a finished product that is second to none.

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

PRO SERIES I-BEAM RODS  STANDARD WEIGHT

Heavier beam for forced induction applications

• Forged from 4340 or 300M aircraft quality vacuum degassed material
• Fully machined to produce the lightest and strongest rod possible
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Cap fasteners are 7/16” ARP 2000 or optional 7/16” ARP Custom Age 625+ cap screws
• Flywheel horsepower range is 900+ HP – Oval Track, 1200+ HP – Drag Race

The above connecting rods are supplied with 1.450” under head length 7/16” ARP 2000 
cap screw fasteners P/N 42390. Upgraded 7/16”

ARP Custom Age 625+ cap screws P/N
42252 are available.

To order upgraded fasteners, affix “R6” after the rod part number.
Horsepower range could be exceeded depending upon rpm, stroke, piston weight

Rod Length – 6.200″

Rod Journal – 2.252″

Pin Diameter – .9281”, .9457” or .9848”
