Mishimoto Aluminum Radiator - Chevy SS / Caprice PPV

The Chevy SS / Caprice PPV is the ultimate modern sleeper.  With four doors and a relatively unassuming exterior, most on the road wouldn’t know a 400+ HP V8 lurks under the hood that’s capable of propelling the family sedan to 60 MPH in 4.5 seconds.  That would be enough for most people, but you bought an LS-powered commuter.  You’re not like most people.  Chances are, you’ve already got a few power-adding parts under the hood, and with more power comes more heat.

Luckily, Mishimoto has developed a massive upgrade for the stock radiator in your SS/PPV.  Our all-aluminum radiator features a two-row, 55 mm-thick core that expands core volume by 84 percent compared to the stock radiator.  That extra volume means you can hammer the throttle for longer without worrying about coolant temps creeping up.  You need an efficient core to pull enough heat out with that much volume.  Our radiator increases fin surface area by a whopping 143 percent to effectively transfer heat from the coolant into the passing air.

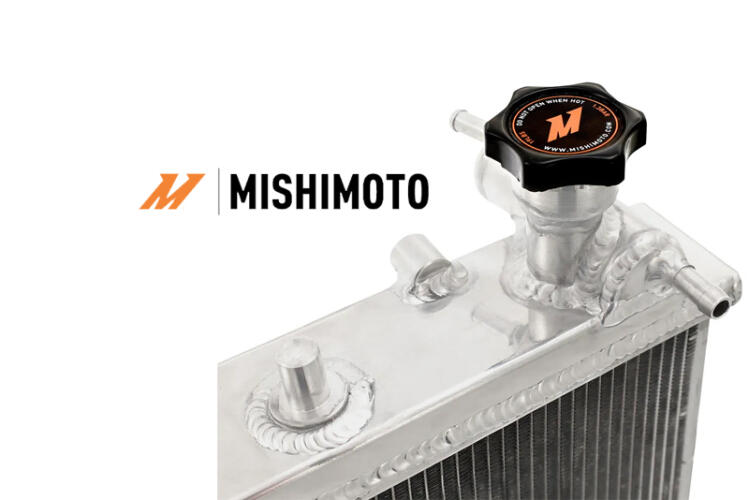

This Mishimoto performance radiator for the SS and PPV is a beast, just like your car, but performance isn’t everything.  Our radiator is built to last with precision TIG-welded aluminum end tanks that won’t crack or split over time like the stock plastic tanks.  We know the little things make a difference, so we’ve included a slotted drain plug that makes maintenance mess-free.  And, like all Mishimoto Radiators, this radiator is backed by our Mishimoto Lifetime Warranty.

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

KEY FEATURES :

• Direct fit for 2014-2017 Chevrolet SS & 2011-2017 Caprice PPV
• 84 percent increase in core volume lets you spend more time on the throttle without overheating
• 143 percent increase in fin surface area vastly improves heat transfer
• 50 mm-thick, two-row core balances optimal flow and heat transfer
• Precision TIG-welded end tanks resist vibration and impacts on the track or street
• Slotted drain plug makes maintenance mess-free

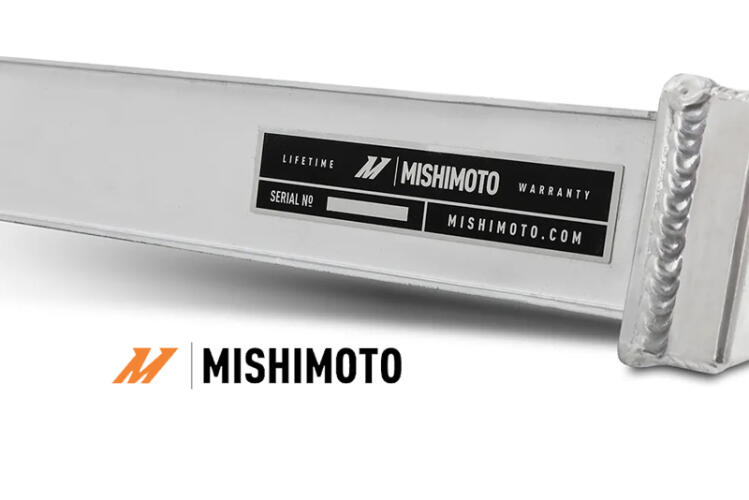

  Mishimoto Lifetime Warranty

TECH SPECS:

• OVERALL HEIGHT (IN)
  • 21.94
• OVERALL LENGTH (IN)
  • 31.71
• CORE LENGTH (IN)
  • 30.39
• CORE HEIGHT (IN)
  • 15.55
• FLUID CAPACITY (GAL)
  • 1.27
• ROWS
  • 118
• INLET (IN)
  • 1.26
• OUTLET (IN)
  • 1.26
• CORE THICKNESS (IN)
  • 1.97
• DRAIN PLUG THREAD SIZE
  • M12x1.5
• ENGINE CODES
  • LS3
  • L77
• CHASSIS CODES
  • VF
  • Zeta
• COOLANT CAPACITY
• 1.27
