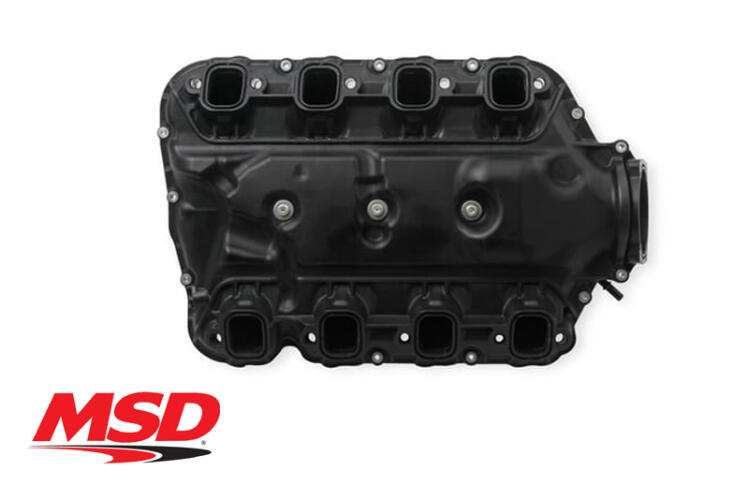

MSD Atomic AirForce Intake Manifold - GM Gen V - LT - Black/Red

The MSD Atomic AirForce intake manifold delivers improved airflow and distribution to improve the performance of stock and modified engines.  The unique bell-mouthed runner entrances maximize airflow and minimize shrouding – all while optimizing the available plenum volume for an unobstructed flow path over opposing runners.  The polymer molded 2-piece design allows for easy access to the runners for porting.  The Atomic AirForce LT1 manifold accepts OEM Drive-By-Wire (DBW) and aftermarket Big-Bore DBW throttle bodies – as well as cable operated throttle bodies.

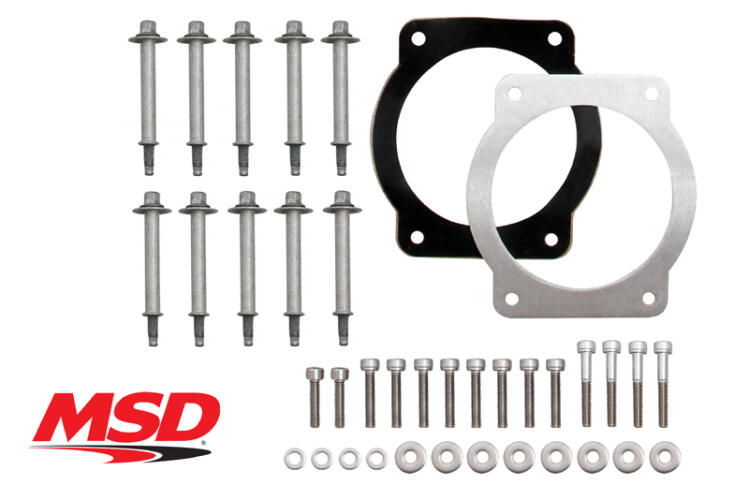

Auxiliary fuel rails and port injectors may also be fitted for applications where the capacity of the stock Gasoline Direct Injection (GDI) system has been exceeded.  The intake is supplied with new OEM-style bolts, but the use of 8 new OEM-style intake port seals is required.

Features:

• CARB Approved, 50 State Legal EO# D-722-3
• Designed using Computational Fluid Dynamic Modeling to create optimal plenum volume and efficient air flow paths

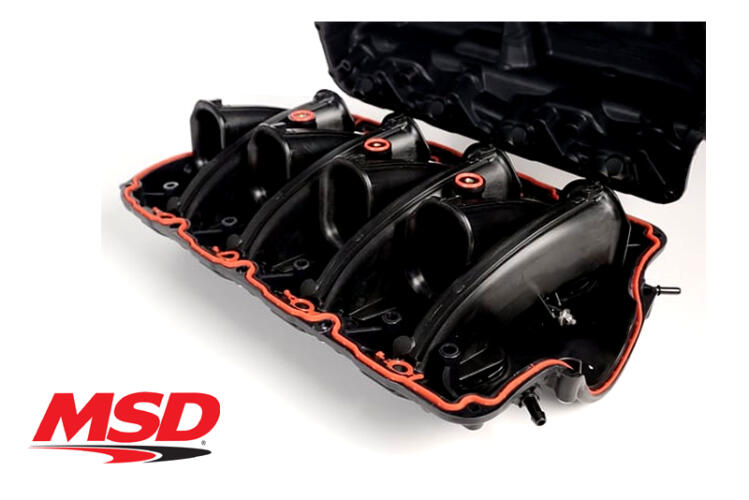

• The two-piece manifold design provide convenient access to the runners for porting
• Direct flow path runner design promotes maximum airflow

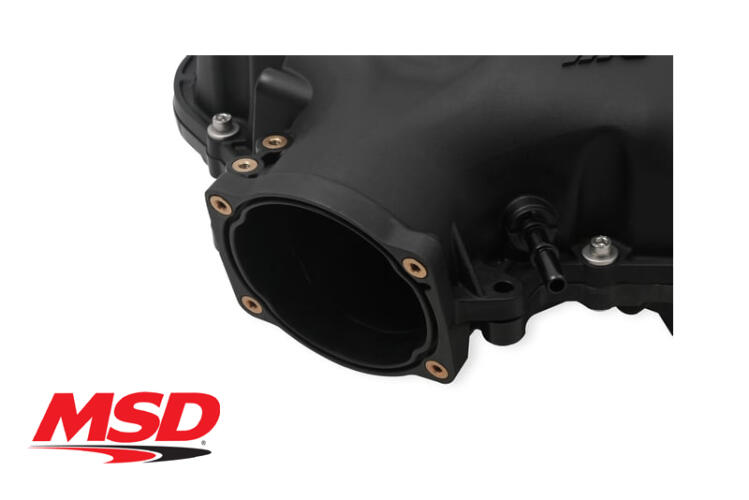

• 103mm Throttle bore allows the use of large throttle bodies for greater air flow
• Polymer material resists heat soak and minimizes weight
• Allows for the use of stock, and aftermarket fuel rails
• Also available with Black or Silver logos

About Livernois Motorsports

Livernois Motorsports & Engineering has become best-known for revolutionary tuning and high-end performance products for late model Ford, Mopar and GM vehicles. The company is proud of its deep roots in the automotive and motorsports industry dating back to its original founding in 1949. Since then the company has expanded its product line to include tuning and performance components for desert racing, SCCA and drag racing. Livernois Motorsports is proud to engineer, test and manufacture its products in the USA.

• C.A.R.B. EO #
  • D-722-3
• Color
  • Black / Red
• Construction
  • Polymer
• Emission Code
  • 1
• Engine
  • GM Small Block Gen V (LT Based)
• Fuel System Type
  • EFI
• Injector Style Provision
  • LS3/L92 EV6 USCAR
• Plenum Volume with Runners
  • 11.22L (684.7 c.i.)
• Plenum Volume without Runners
  • 206.4mm (8.125in)
• Product Type
  • Intake Manifold
• Recommended Use
  • Forced Induction
  • Natual Aspiration
• RPM Power Band
  • 1500-6500 RPM
• Throttle Bore
  • 103mm
• Warranty
  • Limited 1 Year Warranty
